RC76-5B B5

RC76-5B B5; Alfar Electronic; (ID = 395115) Radio

RC76-5B B5; Alfar Electronic; (ID = 395117) Radio

RC76-5B B5; Alfar Electronic; (ID = 395119) Radio
RC76-5B B5; Alfar Electronic; (ID = 395121) Radio RC76-5B B5; Alfar Electronic; (ID = 395123) Radio
Use red slider bar for more.
RC76-5B B5; Alfar Electronic; (ID = 395121) Radio
Alfar Electronic;: RC76-5B B5 [Radio] ID = 395121 650x531
Select picture or schematic to display from thumbnails on the right and click for download.
For model RC76-5B B5, Alfar Electronic; Paris

Country:  France
Manufacturer / Brand:  Alfar Electronic; Paris
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner

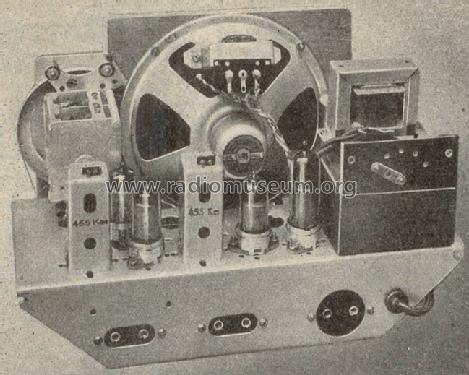

Valves / Tubes 5: ECH42 EF41 EAF42 EL41 GZ40
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: RC76-5B B5 - Alfar Electronic; Paris

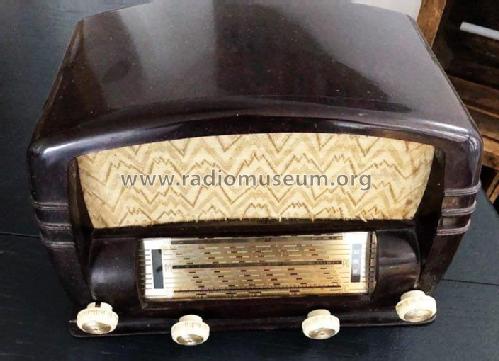

Material Bakelite case
Dimensions (WHD) 330 x 230 x 190 mm / 13 x 9.1 x 7.5 inch
Notes 2× OC dont une bande étalée. Couleurs: marron marbré, bordeaux marbré, rouge marbré, crème.
Literature/Schematics (1) Radio Constructeur et Dépanneur

Model page created by Raynal Aufils. See "Data change" for further contributors.
