B80

B80; All American Mohawk, (ID = 689392) Radio
Use red slider bar for more.
B80; All American Mohawk, (ID = 689392) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 34 32 30 34 30 30 30 30
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Direct Current supply (DC)
Loudspeaker
Power out
from Radiomuseum.org Model: B80 - All American Mohawk, Rauland
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Price in first year of sale 89.00 $
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932

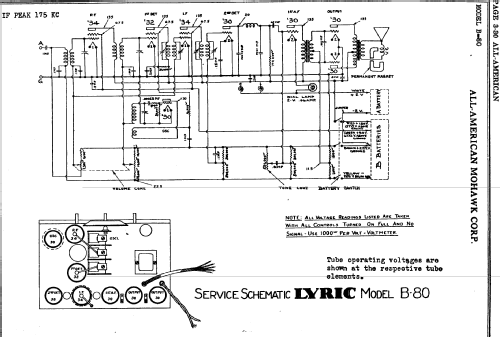

Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
