Lyric D11

Lyric D11 ; All American Mohawk, (ID = 1082913) Radio
Use red slider bar for more.
Lyric D11 ; All American Mohawk, (ID = 1082913) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1930/1931 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 24 24 24 27 45 45 80
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); Screengrid 1926-1935
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 105; 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Lyric D11 - All American Mohawk, Rauland
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes This model is shown in the "Fall and Winter issue 1930-1931 Radio Merchandise Wholesale Catalog" of "The James Bailey Company", 264 Middle Street, Portland, Maine. The Price is $ 99.50 without tubes and the wholesale price is then $ 59.70. With tubes it is $ 117.50 / $ 70.50. The text is interesting: "In the combined plants of the All-American Mohawk Corporation and the Rudolph Wurlitzer Manufacturing Company, at North Tonawanda, New York, 93 % of the comlete LYRIC set is made. The same skill and workmanship that have made the mighty Wurlitzer organs famous is now responsible for the undisputed preëminence of LYRIC. Two hundred years of background and experience in the music indurstry enable this manufacturer to produce an outstanding radio such as the new 1931 LYRIC."
Price in first year of sale 99.50 $ +
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965

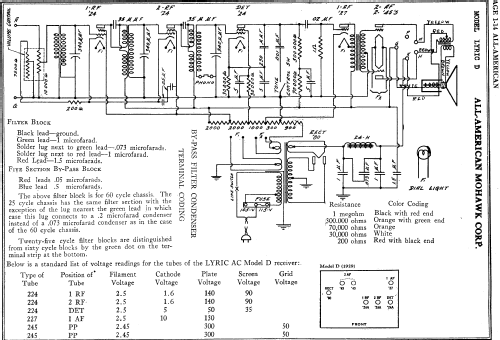

Literature/Schematics (4) Rider's Perpetual, Volume 1 = 1931/1934 (1919 to 1931) (All-American Mohawk Corp. 1-14)
