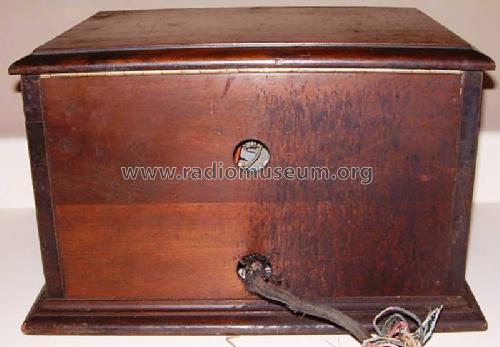

Mohawk Navajo; All American Mohawk, (ID = 563196) Radio Mohawk Navajo; All American Mohawk, (ID = 563199) Radio
Mohawk Navajo; All American Mohawk, (ID = 563200) Radio Mohawk Navajo; All American Mohawk, (ID = 513912) Radio
Mohawk Navajo; All American Mohawk, (ID = 513913) Radio Mohawk Navajo; All American Mohawk, (ID = 551820) Radio
Mohawk Navajo; All American Mohawk, (ID = 1409140) Radio Mohawk Navajo; All American Mohawk, (ID = 1409141) Radio
Use red slider bar for more.
Mohawk Navajo; All American Mohawk, (ID = 563197) Radio
All American Mohawk,: Mohawk Navajo [Radio] ID = 563197 800x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mohawk Navajo, All American Mohawk, Rauland Lyric; Chicago:
All American Mohawk Corporation's Navajo model front view courtesy of eBay seller davidandrews-tubes.

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1928 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UX201A UX201A UX201A UX201A UX201A UX171
Main principle TRF without regeneration; 3 AF stage(s)
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 90 & 67 & 22.5 & 6 & -4.5 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Mohawk Navajo - All American Mohawk, Rauland
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 17 x 10 x 13 inch / 432 x 254 x 330 mm
Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 117.00 $
Collectors' prices
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 3 = 1933 and before
Mentioned in Radio Collector`s Guide 1921-1932
Literature/Schematics (1) Collector's Guide to Antique Radios (7th Edition)
