Radio-Phonograph Combination spring motor

Radio-Phonograph Combination ; All American Mohawk, (ID = 1380023) Radio Radio-Phonograph Combination ; All American Mohawk, (ID = 1380024) Radio
Use red slider bar for more.
Radio-Phonograph Combination ; All American Mohawk, (ID = 1380023) Radio

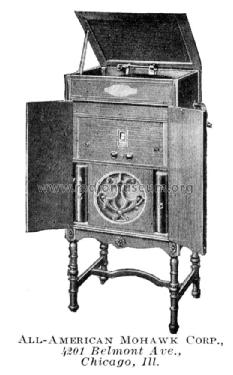

All American Mohawk,: Radio-Phonograph Combination [Radio] ID = 1380023 544x875
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio-Phonograph Combination spring motor, All American Mohawk, Rauland Lyric; Chicago:
Scanned from the Radio Retailing October 1928 page 66

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1928/1929 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 227 227 171A 226 226 226
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Radio-Phonograph Combination [spring motor] - All American Mohawk, Rauland
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

Spring drive motor; RCA electric pickup system. Walnut cabinet.

The same Radio-Phonograph combination was available with electric motor and dynamic speaker (see here).

Price in first year of sale 245.00 USD
Mentioned in Radio Retailing (Radio & Television R.) (Oct. 1928, p.66)

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
