Rauland AF Transformer R-12, R-21, R-13

Rauland AF Transformer R-12, R-21, R-13; All American Mohawk, (ID = 2268051) Radio part Rauland AF Transformer R-12, R-21, R-13; All American Mohawk, (ID = 1302866) Radio part
Rauland AF Transformer R-12, R-21, R-13; All American Mohawk, (ID = 1444353) Radio part
Use red slider bar for more.
Rauland AF Transformer R-12, R-21, R-13; All American Mohawk, (ID = 2268051) Radio part
All American Mohawk,: Rauland AF Transformer R-12, R-21, R-13 [Radio part] ID = 2268051 177x186
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rauland AF Transformer R-12, R-21, R-13, All American Mohawk, Rauland Lyric; Chicago:
Part of Craigslist item 6607632147, 4JUN2018.

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1922 Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Rauland AF Transformer R-12, R-21, R-13 - All American Mohawk, Rauland
Material Various materials
Notes Rauland Audio Frequency Transformer.

Type R-12: 3 to 1 ratio, $4.50
Type R-21: 5 to 1 ratio, $4.75
Type R-13: 10 to 1 ratio, $4.75
Price in first year of sale 4.00 USD

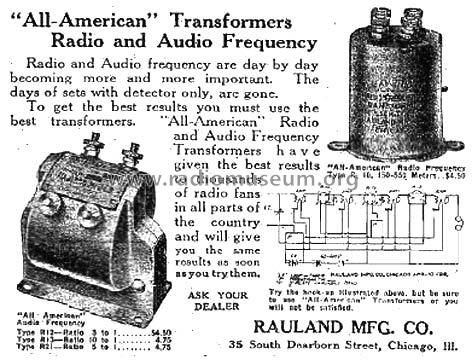

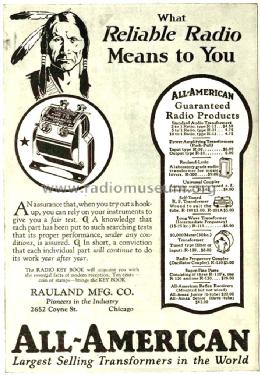

Mentioned in Radio Broadcast, Feb. 1925, p. 848d
Literature/Schematics (2) Radio Digest Illustrated, 1922 Oct. 21, p. 6

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.
