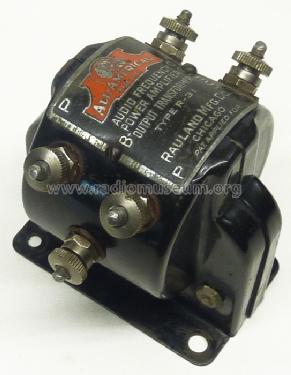

Rauland AF Output Transformer R-31

Rauland AF Output Transformer R-31; All American Mohawk, (ID = 1004301) Radio part Rauland AF Output Transformer R-31; All American Mohawk, (ID = 1004300) Radio part
Rauland AF Output Transformer R-31; All American Mohawk, (ID = 1004302) Radio part
Use red slider bar for more.
Rauland AF Output Transformer R-31; All American Mohawk, (ID = 1004301) Radio part
All American Mohawk,: Rauland AF Output Transformer R-31 [Radio part] ID = 1004301 718x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rauland AF Output Transformer R-31, All American Mohawk, Rauland Lyric; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1924 ? Category: Radio part (not a module)
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Rauland AF Output Transformer R-31 - All American Mohawk, Rauland
Material Metal case
Dimensions (WHD) 66 x 67 x 65 mm / 2.6 x 2.6 x 2.6 inch
Notes Audio Frequency Power Amplifier push-pull Output Transformer.
Net weight (2.2 lb = 1 kg) 0.385 kg / 0 lb 13.6 oz (0.848 lb)
Price in first year of sale 6.00 $
Source of data - - Data from my own collection
Literature/Schematics (1) Radio News, February 1924 /1143
Literature/Schematics (2) Radio Broadcast, Feb. 1925, p. 848d

Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
