For model S7, All American Mohawk, Rauland Lyric; Chicago

Country:  United States of America (USA)
Manufacturer / Brand:  All American Mohawk, Rauland Lyric; Chicago
alternative name

All American Electrical Manufacturers || All-American Radio || American Mohawk || Mohawk Corporation of Illinois || Mohawk Electric Corporation || Rauland Mfg.Co.
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 35 24 27 35 24 47 80
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: S7 - All American Mohawk, Rauland
Material Wooden case

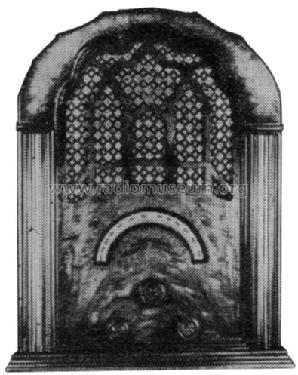

Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Price in first year of sale 69.00 $
Collectors' prices
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Circuit diagram reference Rider's Perpetual, Volume 1 = 1931/1934 (for 1919-1931)
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) Machine Age to Jet Age II (page 187.)
Literature/Schematics (2) Cathedral & Tombstone Radios (page 167.)
