• Year
  • 1936 ??
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 82840

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Bastel-Skala - Allei, Alfred Lindner, Machern
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 130 x 100 mm / 7.1 x 5.1 x 3.9 inch
  • Notes

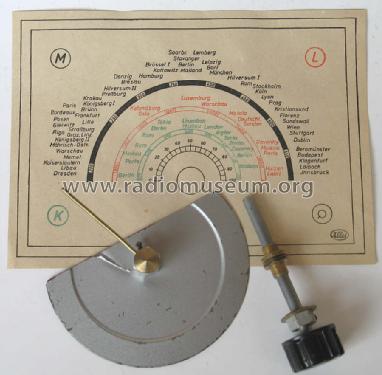

  • Uhrenskala mit Friktionsantrieb und Zeiger für den Drehko auf selbst gefertigter Frontplatte. Bautiefe je nach Drehko. Bereiche K-M-L-TA eingezeichnet.
  • Source of data
  • Radiokatalog Band 2, Ernst Erb
  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
