19F 497 ; Allied Radio Corp. (ID = 1517122) Radio
Allied Radio Corp.: 19F 497 [Radio] ID = 1517122 933x638
Select picture or schematic to display from thumbnails on the right and click for download.
For model 19F 497, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL):
SAMS Photofact Vol.6/48 496-11 Set 58 Folder 11

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1951 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 19: 6BA6 6BE6 6SG7 6SH7 6U5 6AL5 6BA6 6BE6 6SQ7 6J5 6C4 6J5 6J5 6V6GT 6V6GT 6V6GT 6V6GT 5Y3GT 5Y3GT
Main principle Superheterodyne (common); ZF/IF 455-10.7MH kHz
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 105-125 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: 19F 497 - Allied Radio Corp. Knight,
External source of data Ernst Erb

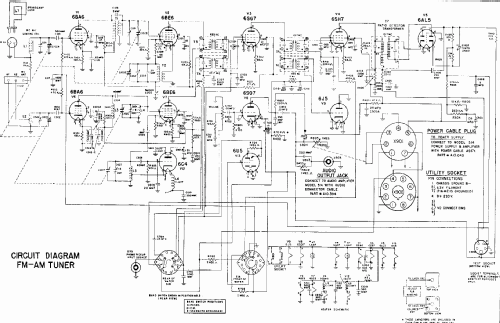

Circuit diagram reference Rider's Perpetual, Volume 19 = 1949 and before


All listed radios etc. from Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Here you find 972 models, 570 with images and 641 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
