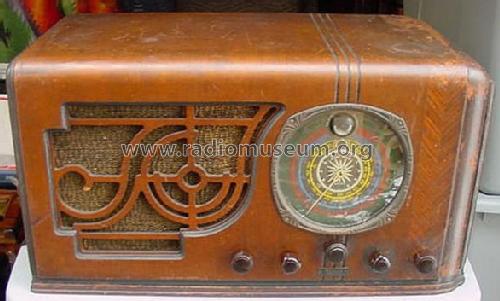

Allied Radio Corp.: A 9830 Ch= 47 AE [Radio] ID = 2067359 586x353
Select picture or schematic to display from thumbnails on the right and click for download.
For model A 9830 Ch= 47 AE, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL):
Ebay Seller: willeezwarez Item Number: 262797500792 Picture used with permission courtesy of Ebay Seller willeezwarez

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6K7 6L7 6J7 6K7 6G5 6H6 6C5 6C5 6F6 6F6 5Z3
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: A 9830 Ch= 47 AE - Allied Radio Corp. Knight,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 25.5 x 13.5 x 12.5 inch / 648 x 343 x 318 mm
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before


All listed radios etc. from Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Here you find 966 models, 565 with images and 630 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
