• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1937 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32115

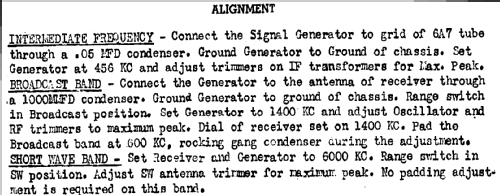

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 75 42 80

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

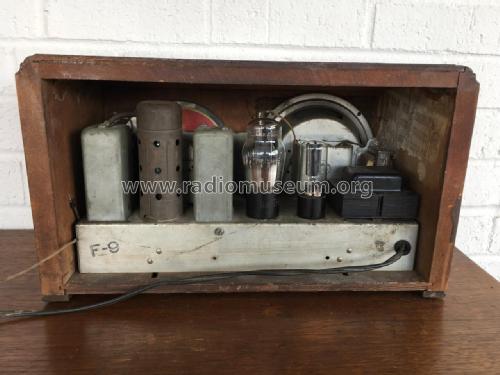

• Model: A 9775 Ch= B 1 - Allied Radio Corp. Knight,

• Shape
• Tablemodel, with any shape - general.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 8 = 1937 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (page 97.)

• Other Models

• Here you find 1361 models, 1028 with images and 682 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
