• Country
• United States of America (USA)

• Manufacturer / Brand
• Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

• Year
• 1937

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 32128

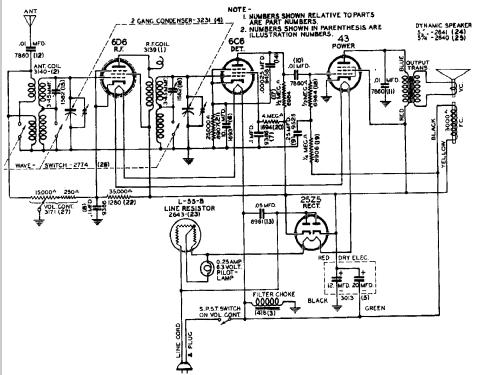

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6D6 6C6 43 25Z5 L55B

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

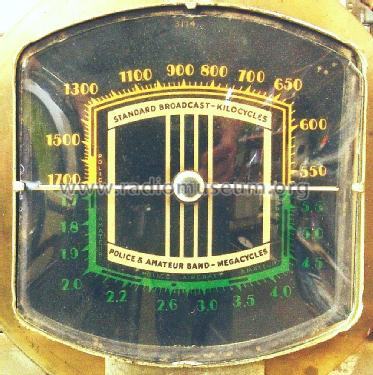

• Wave bands
• Broadcast (MW) and Tropical/Marine/Police Band(s) = 150-200m.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Material
• Wooden case

• from Radiomuseum.org

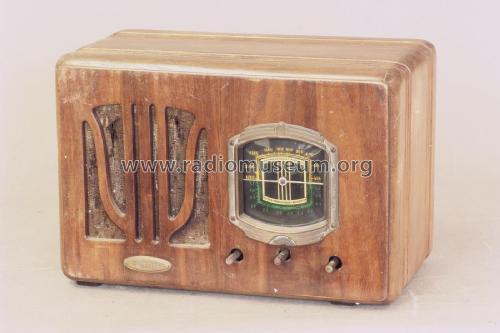

• Model: Knight A9825 Ch= 69U - Allied Radio Corp. Knight,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12 x 8 x 6.5 inch / 305 x 203 x 165 mm

• Price in first year of sale
• 11.65 USD

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 9 = 1938 and before

• Mentioned in
• Allied Radio Catalog (Knight) (1937, page 2)

• Other Models

• Here you find 1031 models, 633 with images and 672 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
