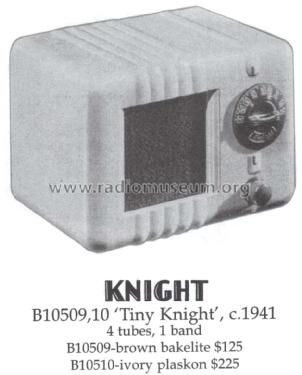

B 10509 "Tiny Knight" bakelite
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1942 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 233355
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- TRF without regeneration
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: B 10509 "Tiny Knight" [bakelite] - Allied Radio Corp. Knight,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
Brown bakelite. Same model available in ivory plaskon: model B 10510 "Tiny Knight".
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 13 = 1942 and before
- Mentioned in
- Table Top Radios Vol. 1 Stein 98 (page 97.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
