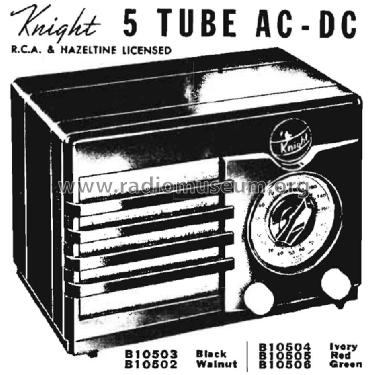

Knight 5 tubes AC/DC B-10505 red

Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233542

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • TRF without regeneration
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • AC/DC-set / 110 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
  • Power out
  • 2 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Knight 5 tubes AC/DC B-10505 [red] - Allied Radio Corp. Knight,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 10 x 6 x 6.75 inch / 254 x 152 x 171 mm
  • Notes

  • The Knight 5 Tube AC-DC TRF tunes from 75 to 180 and 180 to 550 Meters.
    Cabinets are availlable in choice of the following colors:

    B 10502 = Walnut
    B 10503 = Black
    B 10504 = Ivory
    B 10505 = Red
    B 10506 =Green
    Other feature: built-in antenna.

  • Net weight (2.2 lb = 1 kg)
  • 9 lb (9 lb 0 oz) / 4.086 kg
  • Price in first year of sale
  • 22.50 $
  • Author
  • Model page created by Geert Schulte. See "Data change" for further contributors.
