Knight D-150 (Knight 12) 5-Band Chassis
Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 162183
Allied Radio Catalogue 1942 p. 18
Allied Radio Catalogue 1942 p. 18
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; 2 AF stage(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
- Power out
- 10 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org

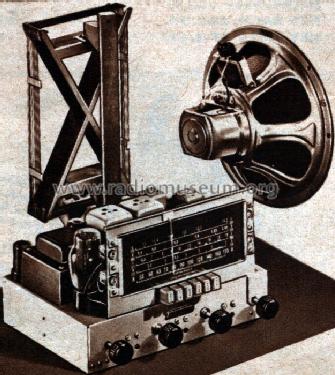

- Model: Knight D-150 5-Band Chassis - Allied Radio Corp. Knight,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 12.37 x 8.5 x 8.5 inch / 314 x 216 x 216 mm
- Notes
- With loop antenna & speaker. Frequency ranges: 540-1712kHz, 3-9 & 8.5-23.5MHz, 9.4-9.8 & 11-12MHz (spread).
- Price in first year of sale
- 40.00 $
- Literature/Schematics (1)
- Allied Radio Catalog (Knight) (1942 p. 18)
- Author
- Model page created by Edmund H. Ramm. See "Data change" for further contributors.
