- Country
- United States of America (USA)
- Manufacturer / Brand
- Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
- Year
- 1936 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 245808

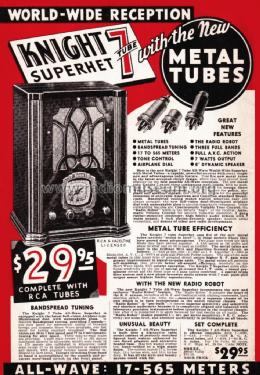

1936 Allied catalog, back cover
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 110 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Power out
- 7 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Knight H9835 - Allied Radio Corp. Knight,
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 13.5 x 17.75 x 10.5 inch / 343 x 451 x 267 mm
- Notes
-
Bandspread tuning.
- Price in first year of sale
- 29.95 USD
- Mentioned in
- Cathedral & Tombstone Radios (page 156.)
- Literature/Schematics (1)
- Allied Radio Catalog (Knight) (1936, back cover)
- Author
- Model page created by Noemi Erb. See "Data change" for further contributors.
