Knight H-68

Knight H-68; Allied Radio Corp. (ID = 1116989) Radio

Knight H-68; Allied Radio Corp. (ID = 1116990) Radio
Knight H-68; Allied Radio Corp. (ID = 914192) Radio Knight H-68; Allied Radio Corp. (ID = 914193) Radio

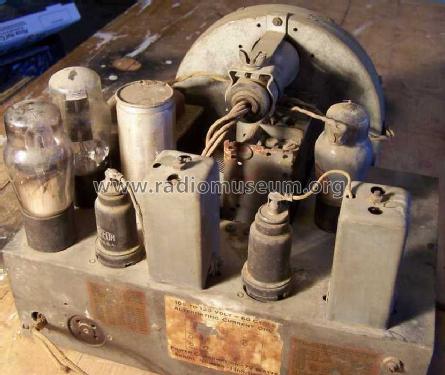

Knight H-68; Allied Radio Corp. (ID = 914194) Radio
Use red slider bar for more.
Knight H-68; Allied Radio Corp. (ID = 914192) Radio
Allied Radio Corp.: Knight H-68 [Radio] ID = 914192 933x550
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knight H-68, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6A7 6K7 6Q7 6B5 6G5 80
Main principle Superheterodyne (common); ZF/IF 465 kHz
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 120 & 1 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: Knight H-68 - Allied Radio Corp. Knight,
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

Produced by Howard Radio Corp. for Allied. The equivalent Howard model number is 68.

1V bias cell.

Source of data - - Data from my own collection

Model page created by Michael Schaub. See "Data change" for further contributors.
