17 C 11

17 C 11; Allocchio Bacchini (ID = 1101928) Television

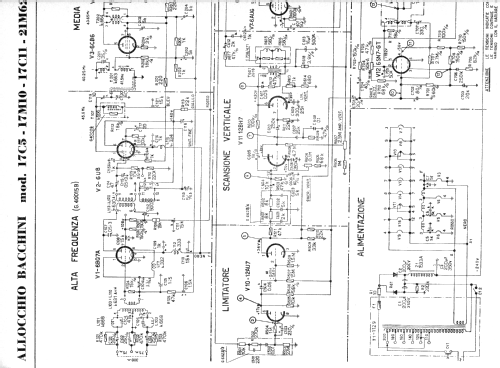

17 C 11; Allocchio Bacchini (ID = 1101929) Television
17 C 11; Allocchio Bacchini (ID = 253950) Television 17 C 11; Allocchio Bacchini (ID = 253951) Television

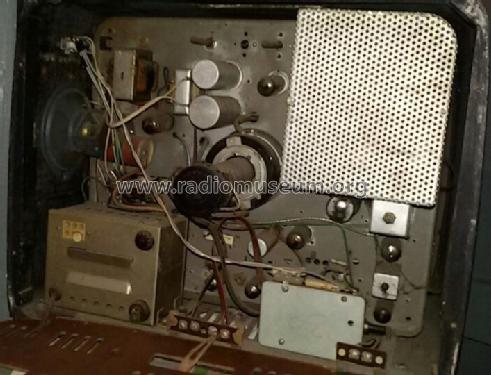

17 C 11; Allocchio Bacchini (ID = 2049192) Television
Use red slider bar for more.
17 C 11; Allocchio Bacchini (ID = 253950) Television
Allocchio Bacchini: 17 C 11 [Television] ID = 253950 697x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 17 C 11, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1956–1959 Category: Television Receiver (TV) or Monitor
Valves / Tubes 16: 6BQ7A 6U8 6CB6 6CB6 6AU6 6CB6 6AU6 6T8 6QL6 12AU7 12BH7 6SN7GT 6BQ6GT 6AX4GT 1B3GT 17LP4A
Main principle Superhet with RF-stage
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 180; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 17 C 11 - Allocchio Bacchini Radialba;
Material Wooden case
Shape Tablemodel, with any shape - general.
Circuit diagram reference Schemario TV , Il Rostro

Model page created by Alessandro De Poi. See "Data change" for further contributors.
