53CA/G

53CA/G; Allocchio Bacchini (ID = 382172) Radio

53CA/G; Allocchio Bacchini (ID = 939450) Radio
53CA/G; Allocchio Bacchini (ID = 411702) Radio 53CA/G; Allocchio Bacchini (ID = 411705) Radio

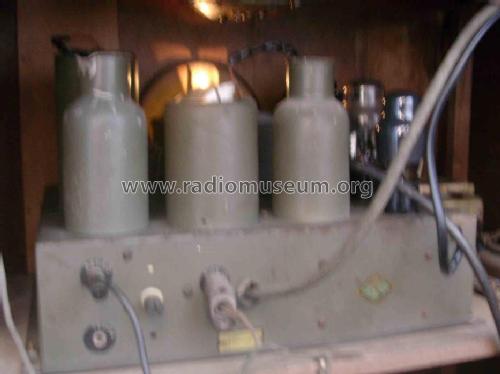

53CA/G; Allocchio Bacchini (ID = 411706) Radio
Use red slider bar for more.
53CA/G; Allocchio Bacchini (ID = 411702) Radio
Allocchio Bacchini: 53CA/G [Radio] ID = 411702 525x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model 53CA/G, Allocchio Bacchini (Radialba); Milano

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2A6 2A5 80
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).

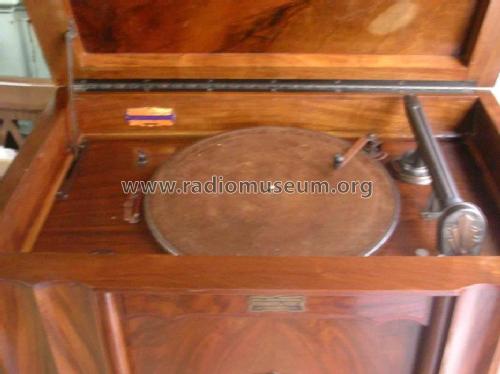

Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 53CA/G - Allocchio Bacchini Radialba;
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 540 x 960 x 400 mm / 21.3 x 37.8 x 15.7 inch
Source of data Guida Pratica Antique Radio II (2000)

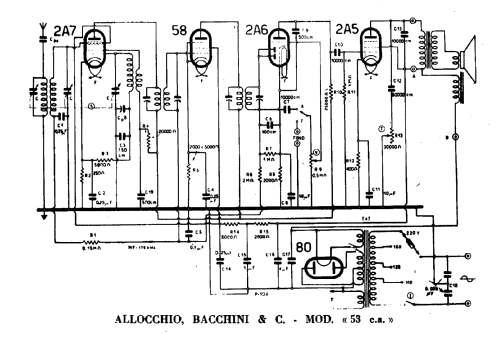

Literature/Schematics (1) -- Schematic

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Allocchio Bacchini (Radialba); Milano
Here you find 306 models, 207 with images and 208 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
