• Year
  • 1934/1935
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 105922

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 175 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 160; 220 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 81CA/G - Allocchio Bacchini Radialba;
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 680 x 1060 x 460 mm / 26.8 x 41.7 x 18.1 inch
  • Notes
  • Controllo di tono. Ingresso per giradischi

    Indicatore ottico di sintonia.

  • Literature/Schematics (1)

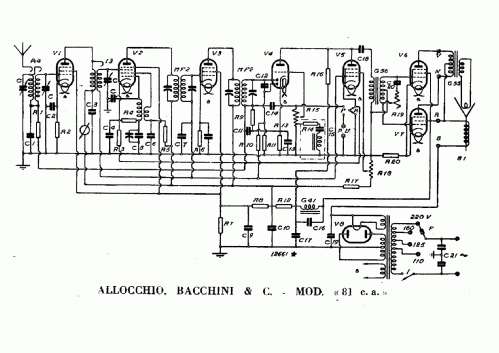

  • -- Schematic
  • Literature/Schematics (2)
  • -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria - 1945)
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
