MF1060

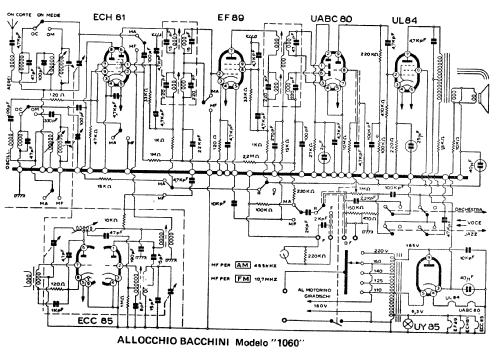

MF1060; Allocchio Bacchini (ID = 358082) Radio
MF1060; Allocchio Bacchini (ID = 1948714) Radio MF1060; Allocchio Bacchini (ID = 1948715) Radio
MF1060; Allocchio Bacchini (ID = 1948716) Radio MF1060; Allocchio Bacchini (ID = 1948718) Radio
MF1060; Allocchio Bacchini (ID = 1948720) Radio MF1060; Allocchio Bacchini (ID = 1948722) Radio
MF1060; Allocchio Bacchini (ID = 1948723) Radio MF1060; Allocchio Bacchini (ID = 1948724) Radio
Use red slider bar for more.
MF1060; Allocchio Bacchini (ID = 1948714) Radio
Allocchio Bacchini: MF1060 [Radio] ID = 1948714 900x549
Select picture or schematic to display from thumbnails on the right and click for download.
For model MF1060, Allocchio Bacchini (Radialba); Milano:
Allocchi Bacchini MF1060 Front 1

Country:  Italy
Manufacturer / Brand:  Allocchio Bacchini (Radialba); Milano
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 UABC80 UL84 UY85
Main principle Superheterodyne (common); ZF/IF 465/10700 kHz; 2 AF stage(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: MF1060 - Allocchio Bacchini Radialba;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 355 x 210 x 375 mm / 14 x 8.3 x 14.8 inch
Source of data Guida Pratica Antique Radio (1) 1999

Model page created by Alessandro De Poi. See "Data change" for further contributors.



All listed radios etc. from Allocchio Bacchini (Radialba); Milano
Here you find 302 models, 203 with images and 203 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
