• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1942 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 304651

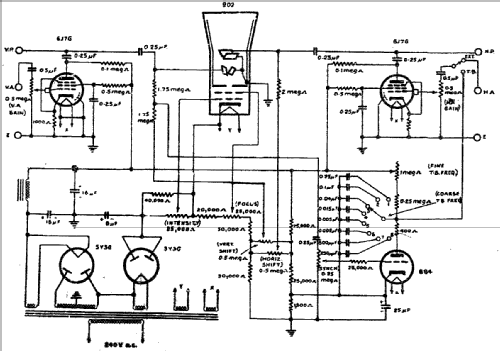

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J7G 6J7G 884 5Y3G 5Y3G 902

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 200-260 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AWA Cathode Ray Oscillograph R6673 - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 12 x 8 x 8 inch / 305 x 203 x 203 mm

• Notes

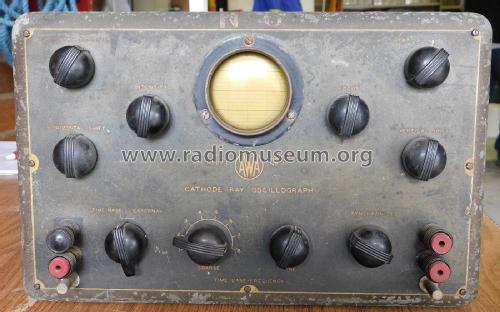

• This is a small 2 inch oscilloscope.  Provision is made on the front panel for connecting directly to the CRT deflection plates.

  The oscilloscope has a bandwidth of 30c/s to 12 kc/s.

  This model appears very similar to the model 3R6673.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
