• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1937 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 210310

• Number of Tubes
• 2

• Valves / Tubes
• 30 30

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Dry Batteries / 67.5 & 4.5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AWA Modulated Oscillator C1070 - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 357 x 240 x 207 mm / 14.1 x 9.4 x 8.1 inch

• Notes

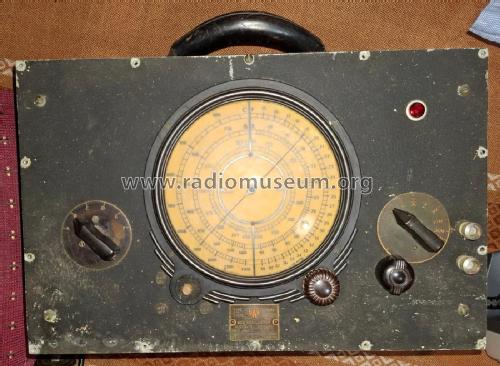

• This is a modulated oscillator for radio servicing. It has six bands covering 100 kHz to 20 MHz.

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
