AWA Speaker PA PA152

AWA Speaker PA PA152; Amalgamated Wireless (ID = 2397065) Speaker-P AWA Speaker PA PA152; Amalgamated Wireless (ID = 2397069) Speaker-P
AWA Speaker PA PA152; Amalgamated Wireless (ID = 2397070) Speaker-P AWA Speaker PA PA152; Amalgamated Wireless (ID = 2397071) Speaker-P
Use red slider bar for more.
AWA Speaker PA PA152; Amalgamated Wireless (ID = 2397065) Speaker-P
Amalgamated Wireless: AWA Speaker PA PA152 [Speaker-P] ID = 2397065 768x967
Select picture or schematic to display from thumbnails on the right and click for download.
For model AWA Speaker PA PA152, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA PA152 Front

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1964 Category: Loudspeaker, headphone or earphone
Main principle Audio-Amplification
Details
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: AWA Speaker PA PA152 - Amalgamated Wireless
Material Moulded (Bakelite or Plastics)
Dimensions (WHD) 260 x 300 x 170 mm / 10.2 x 11.8 x 6.7 inch
Notes

Plastic moulded cabinet fitted with an 8 inch, MSP speaker with a 600Ω,100 Volt Line Transformer which could be fitted with an optional attenuator.

Wall or desk mounting with a two tone finish of Lavender and Beige.

Net weight (2.2 lb = 1 kg) 1.8 kg / 3 lb 15.4 oz (3.965 lb)

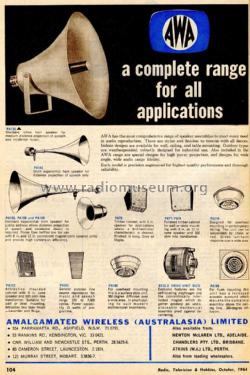

Mentioned in -- Original prospect or advert (Radio, Television and Hobbies, Oct 1964, Page 104)

Model page created by Joshua Boxer. See "Data change" for further contributors.
