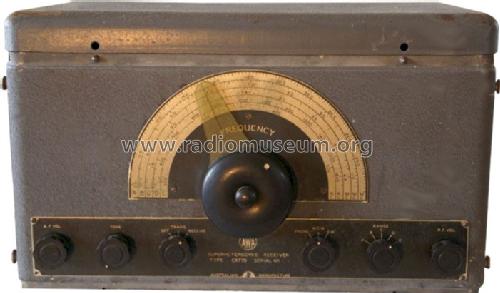

AWA Superheterodyne Receiver C6770 (3BZ)

AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 2536170) Commercial Re AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 2536169) Commercial Re
AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 657849) Commercial Re AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 657851) Commercial Re
AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 2536168) Commercial Re
Use red slider bar for more.
AWA Superheterodyne Receiver C6770 ; Amalgamated Wireless (ID = 2536170) Commercial Re
Amalgamated Wireless: AWA Superheterodyne Receiver C6770 [Commercial Re] ID = 2536170 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model AWA Superheterodyne Receiver C6770 (3BZ), Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
Unit modified for 240V AC Operation and Neon Indicator Light added.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1940 ? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 5: 6U7G 6J8G 6J8G 6J8G 6V6G
Main principle Superhet with RF-stage; ZF/IF 535 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 or 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AWA Superheterodyne Receiver C6770 - Amalgamated Wireless
Material Metal case
Shape Tablemodel, low profile (big size).
Notes AWA C6770 (3BZ) Superheterodyne Receiver;
Tuning Range:
E: 200 - 515 kHz,
D: 545 - 1650 kHz,
C: 1.5 - 4.6 MHz,
B: 3.5 - 11.1 MHz,
A: 9 - 30 MHz,
BFO, line & phones out.

Model page created by a member from A. See "Data change" for further contributors.
