• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1959 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 304665

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AU6 6U5 6X4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 230 - 260 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

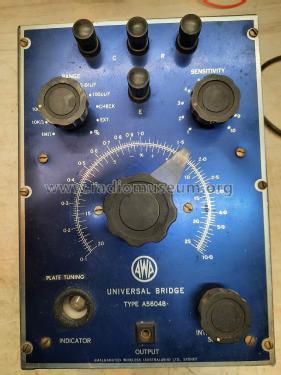

• Model: AWA Universal Bridge A56048 - Amalgamated Wireless

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 6.4 x 9 x 4.5 inch / 163 x 229 x 114 mm

• Notes

• A.W.A. Universal Bridge type A56048 is a self-contained mains-operated, Wheatstone Bridge.

  • Resistance Ranges: 0.1 to 10 ohms
  • Capacitance Ranges: 10pF. to 10µF.
  • Inductance Range: 1.0mH. to 10H. by reference to external  standards with  RANGE switch at EXT.

• Net weight (2.2 lb = 1 kg)
• 7.5 lb (7 lb 8 oz) / 3.405 kg

• Mentioned in
• - - Manufacturers Literature

• Author
• Model page created by Gary Cowans. See "Data change" for further contributors.
