Radiolette C87

Radiolette C87; Amalgamated Wireless (ID = 161601) Radio

Radiolette C87; Amalgamated Wireless (ID = 277178) Radio

Radiolette C87; Amalgamated Wireless (ID = 2150742) Radio

Radiolette C87; Amalgamated Wireless (ID = 2150743) Radio

Radiolette C87; Amalgamated Wireless (ID = 2150744) Radio
Radiolette C87; Amalgamated Wireless (ID = 277179) Radio Radiolette C87; Amalgamated Wireless (ID = 1746949) Radio
Radiolette C87; Amalgamated Wireless (ID = 1798682) Radio Radiolette C87; Amalgamated Wireless (ID = 2150551) Radio
Use red slider bar for more.
Radiolette C87; Amalgamated Wireless (ID = 277179) Radio
Amalgamated Wireless: Radiolette C87 [Radio] ID = 277179 559x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiolette C87, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1932 Category: Broadcast Receiver - or past WW2 Tuner

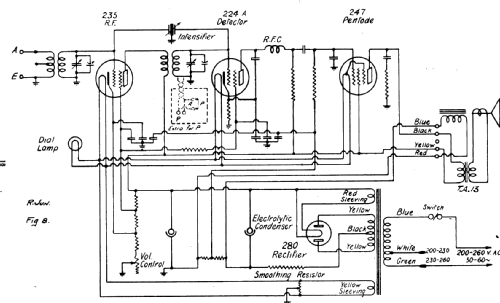

Valves / Tubes 4: 235 224A 247 280
Main principle TRF with regeneration; 1 AF stage(s); Anode bend detection
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiolette C87 - Amalgamated Wireless

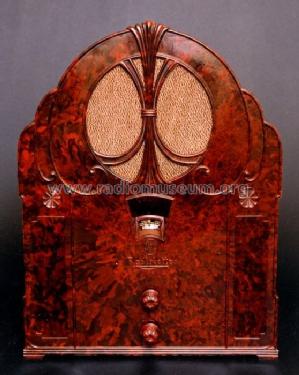

Material Bakelite case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 12.5 x 16 x 6.75 inch / 318 x 406 x 171 mm
Notes

The C87 was the first Australian radio to use a bakelite cabinet. There were two knobs at the front, volume & tunning and a regeneration trimmer control on the left side. The radio was advertised for  £17/17/- in 1932.

A rebadged version called the Junior Four was sold by AGE.

According to the AWA Service Data 1932, page 19, a later modification was to change the RF Choke to a centre tapped version with two extra filter capacitors added. Also a phonograph entry was added.

Price in first year of sale 17.85 AUS £
Mentioned in HRSA AWA Radiolettes 1932-1949 Edition 3, Page 9.
Literature/Schematics (1) HRSA Radiowaves, April 2007, Page 32.
Literature/Schematics (2) AWA Service Data 1932, Page 18

Model page created by Peter Hughes. See "Data change" for further contributors.
