Carnavon K120 Ch=50-11
Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1969
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 287244
Image from Andrew McCallum.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 18
- Valves / Tubes
- 6GK5 6HG8 6AU6 6AL5 6AV6 6AQ5 6BZ6 6CB6 6CB6 6EB8 6CB6 6GV8 6AL5 12AU7A 6CM5 6AU4GTA 1B3GT 23MP4
- Number of Transistors
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Carnavon K120 Ch=50-11 - Amalgamated Wireless
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 31.125 x 28.2 x 15.25 inch / 791 x 716 x 387 mm
- Notes
-
Cabinet finishes available: Teak, Walnut & Maple.
- Price in first year of sale
- 309.00 $AUS
- Mentioned in
- -- Original prospect or advert (AWA 1969 sales brochure.)
- Literature/Schematics (1)
- - - Manufacturers Literature (AWA Television Receiver Chassis 50-00 Series, April 1967.)
- Literature/Schematics (2)

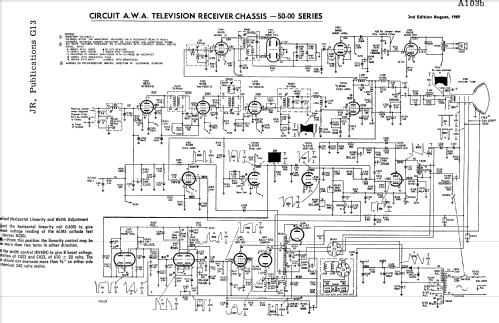

- -- Schematic (J.R. Publications Television Service Handbook L.J. Series Vol. 3 Group 10-20, Nov 1967, Page A103a.)
- Author
- Model page created by Martin Kent. See "Data change" for further contributors.
