Deep Image C608 Ch= Series G

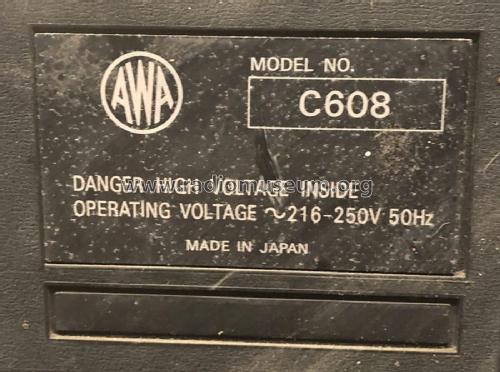

Deep Image C608 Ch= Series G; Amalgamated Wireless (ID = 2603206) Television Deep Image C608 Ch= Series G; Amalgamated Wireless (ID = 2603207) Television
Use red slider bar for more.

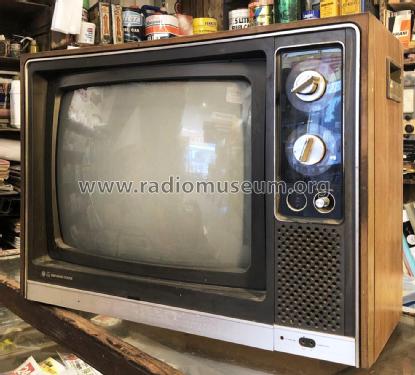

Deep Image C608 Ch= Series G; Amalgamated Wireless (ID = 2603206) Television
Amalgamated Wireless: Deep Image C608 Ch= Series G [Television] ID = 2603206 1400x1265
Select picture or schematic to display from thumbnails on the right and click for download.
For model Deep Image C608 Ch= Series G, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
Ebay-au_264973446079

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1976 ? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet with RF-stage
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 216-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Deep Image C608 Ch= Series G - Amalgamated Wireless
Material Wooden case
Shape Tablemodel, with any shape - general.
Notes

43 cm (18") VHF/UHF colour television receiver.

Model page created by Martin Kent. See "Data change" for further contributors.
