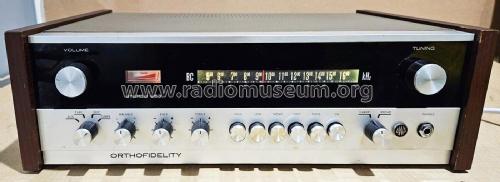

Orthofidelity ST953

Country:  New Zealand
Manufacturer / Brand:  Amalgamated Wireless Australasia (NZ) Ltd. (AWA); Wellington
Year: 1970 ?? Category: Miscellaneous (Other, Various) - see notes
Semiconductors (the count is only for transistors) 31: BF195 BF195 BF194 BF194 BF195 BF196 BC148 BC149 or. AS149 BC149 or. AS149 BC148 BC149 or. AS149 BC149 or. AS149 BC148 BC149 or. AS149 BC149 BC149 or. AS149 BC149 BC149 BC147 BC110 40409 40410 40363 40363 BC149 BC147 BC110 40409 40410 40363 40363 BAY86 unknown_diode unknown_diode BZY85 unknown_diode unknown_diode unknown_diode
Main principle Superhet with RF-stage
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 230-240 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Orthofidelity ST953 - Amalgamated Wireless
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 18 x 5.5 x 13 inch / 457 x 140 x 330 mm
Notes

Combination broadcast receiver & stereo amplifier.

Net weight (2.2 lb = 1 kg) 19 lb 0 oz (19 lb) / 8.626 kg
Literature/Schematics (1) - - Manufacturers Literature (AWA Orthofidelity Handbook.)

Model page created by Martin Kent. See "Data change" for further contributors.
