• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1965–1971

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 163772

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 14

• Valves / Tubes
• 6GK5 6HG8 6EH7 6EJ7 6KV8 6CS6 6EW6 6CB6 6BM8 12AU7A 6CM5 6AX4GT 1X2B 11LP4

• Number of Transistors

• Semiconductors
• 1N87A 1N618 1N618 1N3194 1N3194

• Main principle
• Superhet with RF-stage; ZF/IF 36875 kHz; 1 AF stage(s)

• Tuned circuits
• 3 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 240-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Marconi Deep Image P1 Ch= 46-00 Series - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 14 x 10.25 x 10 inch / 356 x 260 x 254 mm

• Notes

• The AWA P1 series was introduced in 1965 and remained in production until 1971. It tunes the 13 standard Australian VHF channels. There were several variants of this set, including the AWA P1, P1P, P1Q, P1T and P1Y. The earlier P1 series sets were available with a burgundy, white or standard blue cabinet, with matching speaker grille, while the later versions were only available in the standard blue cabinet. However, the sets with a white cabinet still used a darker grey/blue speaker grille.

  The major distinguishing difference between the earlier and later P1 series sets was the CRT and front bezel. The early P1s used an 11LP4 CRT, while the later P1s used an AK11X2 CRT. The AK11X2 had a flatter faceplate than the earlier 11LP4s, and the front bezel was changed to accommodate that. The later AK11X2 CRTs also had the EHT anode connection on the top of the CRT, instead of the side like the earlier models. All CRTs used in the P1 series were 11" monochrone tubes, with 110° electromagnetic deflection.

  Like in previous years, AWA re-badged some of it's televisions for Westinghouse & Electrice - the P1 series being one of these. The model numbers of the Westinghouse/Electrice units are W1147 & E1147, but they are essentially identical to the P1 series.

• Net weight (2.2 lb = 1 kg)
• 19 lb 0 oz (19 lb) / 8.626 kg

• Price in first year of sale
• 114.45 AUS £

• Literature/Schematics (1)

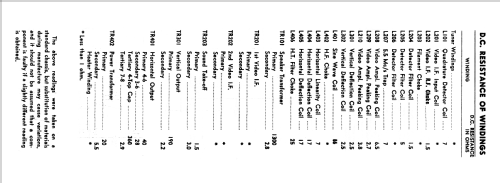

• - - Manufacturers Literature (AWA Manufacturers Supervised Service, June 1965.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (Group 8-18, August 1966, Page A101a.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
