• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 154829

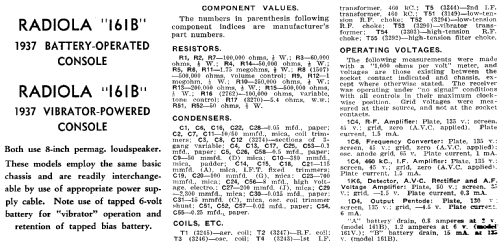

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 135 / 2 / -1.5 / -4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
  • Power out
  • 0.34 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 161B - Amalgamated Wireless
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • This radio could be converted to a model 161V by the addition of a plug in vibrator unit. Uses same chassis as Bandmaster model 357MB.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
