• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1956

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 197496

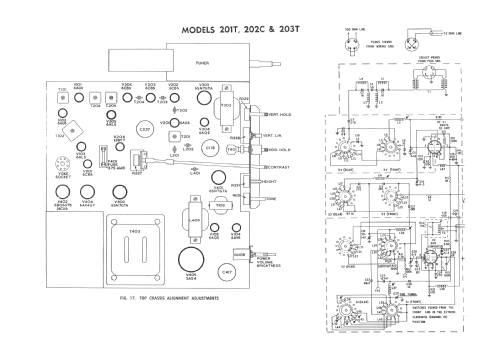

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• 6BQ7A 6U8 6AU6 6AU6 6AL5 6AV6 6AQ5 6AU6 6CB6 6CB6 6CB6 6AL5 12BY7 6CB6 6SN7GTA 6SN7GTA 6AQ5 6SN7GTA 6BQ6GTB 6AX4GT 1B3GT 5AS4 17HP4B

• Main principle
• Superhet with RF-stage; ZF/IF 36000 kHz; 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200; 210; 230; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Radiola 203-T - Amalgamated Wireless

• Shape
• Tablemodel, with any shape - general.

• Notes

• This table TV is designed to suit radiogram model 778GA to complete a home entertainment unit.

  This was one of the first three AWA television models on the Australian market. It tuned the 10 VHF channels used in Australia at the time.

  Cabinet finishes available in Walnut, Mahogany & Maple.

• Literature/Schematics (1)
• - - Manufacturers Literature (AWA Radiola Technical Information & Service Data.)

• Literature/Schematics (2)
• J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & 1967, Page A81.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
