• Year
  • 1937
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 164973

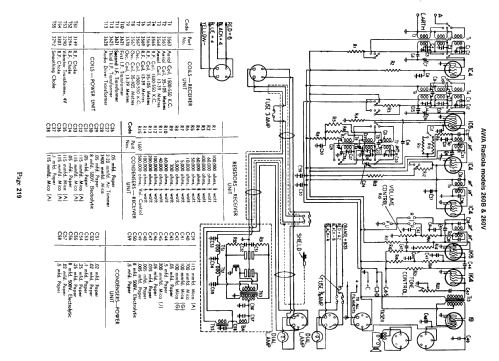

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 460 kHz; 3 AF stage(s)
  • Tuned circuits
  • 9 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Storage and/or dry batteries / 135 & 2 & -3 & -4.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 260B - Amalgamated Wireless
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes
  • Same chassis a Bandmaster model 177DB.
  • Circuit diagram reference
  • Australian Official Radio Service Manual Vol. I
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
