Radiola 437P

Radiola 437P; Amalgamated Wireless (ID = 1370834) Radio Radiola 437P; Amalgamated Wireless (ID = 1370835) Radio

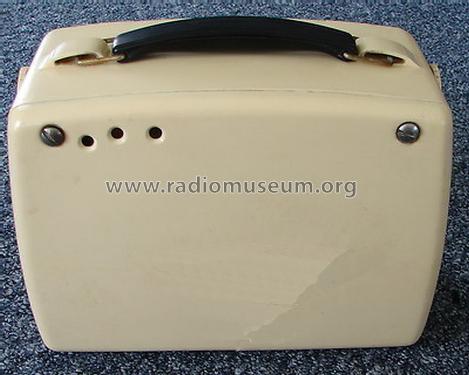

Radiola 437P; Amalgamated Wireless (ID = 1433433) Radio Radiola 437P; Amalgamated Wireless (ID = 1433434) Radio
Radiola 437P; Amalgamated Wireless (ID = 1433435) Radio Radiola 437P; Amalgamated Wireless (ID = 2408260) Radio
Use red slider bar for more.
Radiola 437P; Amalgamated Wireless (ID = 1370834) Radio
Amalgamated Wireless: Radiola 437P [Radio] ID = 1370834 400x294
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 437P, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
ebay # 370728382427 Seller: austcard

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1951–1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3V4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 7.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Radiola 437P - Amalgamated Wireless
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 280 x 210 x 140 mm / 11 x 8.3 x 5.5 inch
Notes

Battery type used: Combination A & B, 7½ V, 9V, 90V Eveready Mini-Max 753 or Diamond 3753.

Price in first year of sale 26.50 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. X
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Information & Service Data.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 55.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
