• Year
  • 1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225810

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 200-230; 230-260 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 1.5 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

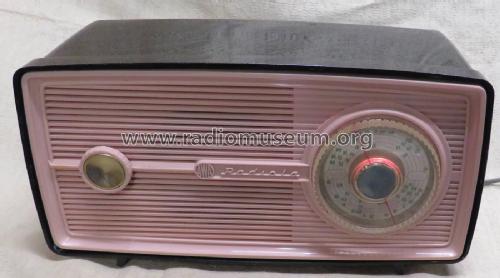

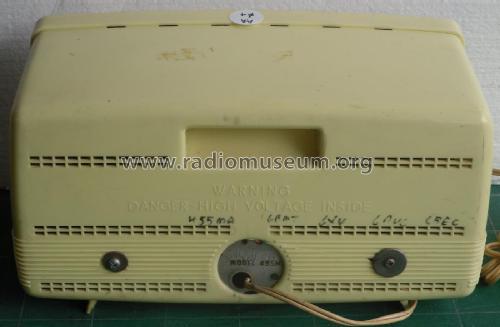

  • Model: Radiola 495MA - Amalgamated Wireless
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 321 x 167 x 155 mm / 12.6 x 6.6 x 6.1 inch
  • Notes
  • Colours available in French Blue, Coral Pink, Primrose & Satin Black.

  • Price in first year of sale
  • 23.10 AUS £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (AWA Radiola Technical Information & Service Data.)
  • Author
  • Model page created by Stuart Irwin. See "Data change" for further contributors.
