- Country
- Australia
- Manufacturer / Brand
- Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 184455

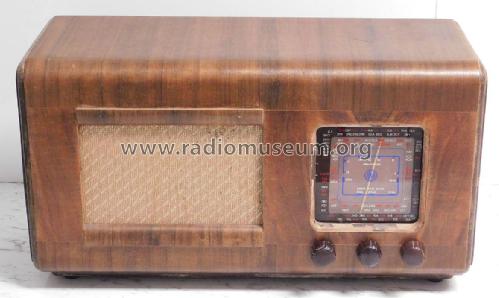

AWA model 515M in "as found" condition.
AWA 515M rear view.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 90 & 1.5 or 90 & 4 or 4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radiola 515M - Amalgamated Wireless
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 444 x 245 x 185 mm / 17.5 x 9.6 x 7.3 inch
- Notes
- This model could be powered from dry batteries only, dry batteries (90V) and a 4 volt accumulator, or a 4 volt accumulator only with a synchronous vibrator unit.
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. VI
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
