Radiola 51GW

Radiola 51GW; Amalgamated Wireless (ID = 718849) Radio

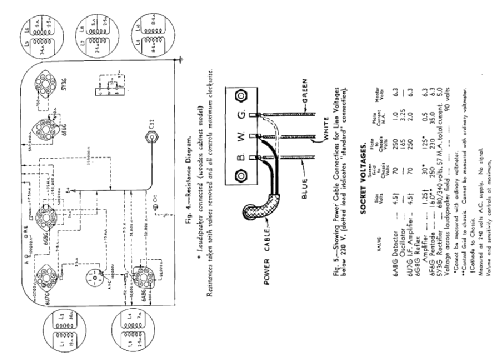

Radiola 51GW; Amalgamated Wireless (ID = 1605599) Radio
Radiola 51GW; Amalgamated Wireless (ID = 1605594) Radio Radiola 51GW; Amalgamated Wireless (ID = 1605596) Radio
Radiola 51GW; Amalgamated Wireless (ID = 1605597) Radio Radiola 51GW; Amalgamated Wireless (ID = 1605598) Radio
Use red slider bar for more.
Radiola 51GW; Amalgamated Wireless (ID = 1605594) Radio
Amalgamated Wireless: Radiola 51GW [Radio] ID = 1605594 900x1063
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 51GW, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A8G 6U7G 6G8G 6F6G 5Y3G
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Reflex
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiola 51GW - Amalgamated Wireless
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes This radio is identical to the model 51G except for having a wooden case.
Price in first year of sale 18.00 Aus£
Circuit diagram reference Australian Official Radio Service Manual Vol. III
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
