Radiola 5 539MA

Radiola 5 539MA; Amalgamated Wireless (ID = 2286833) Radio

Radiola 5 539MA; Amalgamated Wireless (ID = 2286834) Radio

Radiola 5 539MA; Amalgamated Wireless (ID = 2286835) Radio
Radiola 5 539MA; Amalgamated Wireless (ID = 2380807) Radio Radiola 5 539MA; Amalgamated Wireless (ID = 2380303) Radio
Radiola 5 539MA; Amalgamated Wireless (ID = 2380831) Radio Radiola 5 539MA; Amalgamated Wireless (ID = 2380809) Radio
Radiola 5 539MA; Amalgamated Wireless (ID = 2357675) Radio Radiola 5 539MA; Amalgamated Wireless (ID = 2237467) Radio
Radiola 5 539MA; Amalgamated Wireless (ID = 1170659) Radio Radiola 5 539MA; Amalgamated Wireless (ID = 1170660) Radio
Radiola 5 539MA; Amalgamated Wireless (ID = 2356056) Radio
Use red slider bar for more.
Radiola 5 539MA; Amalgamated Wireless (ID = 2380807) Radio
Amalgamated Wireless: Radiola 5 539MA [Radio] ID = 2380807 1146x799
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 5 539MA, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:

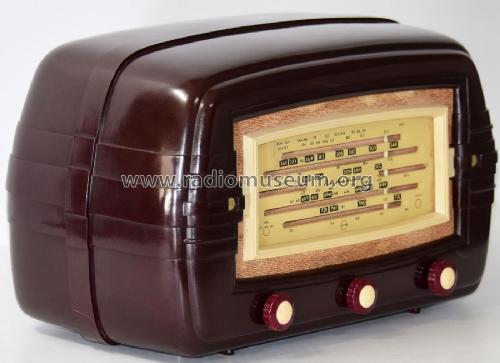

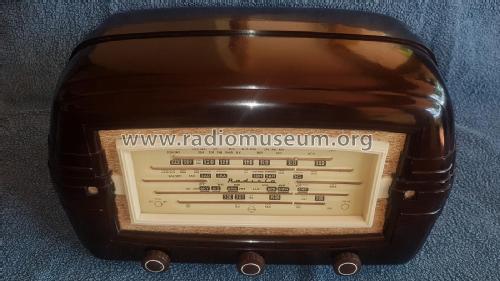

Knobs reproductions, everything else original

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1952–1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6AQ5 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Radiola 5 539MA - Amalgamated Wireless
Material Moulded (Bakelite or Plastics)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Notes

Colours available in Walnut, Burgundy & Ivory.

See also Hotpoint M55ME.

Price in first year of sale 27.30 AUS £

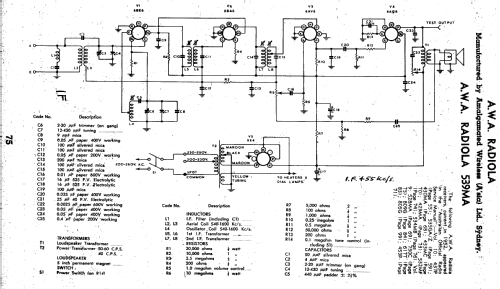

Circuit diagram reference Australian Official Radio Service Manual Vol. XI
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Information & Service Data.)
Literature/Schematics (2) Australian Official Radio Service Manual AORSM (Volume 11, 1953, Page 75.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
