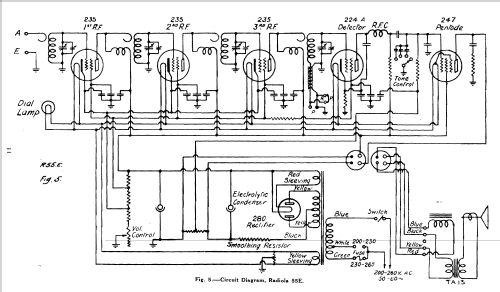

Radiola 55E Ch= C89

ID = 165193

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 2392696) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 2392697) Radio

{gbW: "557", gbH: "933", mW: "223.0", mH: "375", kb: "118 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney", title: "Amalgamated Wireless Radiola 55E Ch= C89 from Harold Norrie (1)", ite: "1"} {gbW: "900", gbH: "1272", mW: "265.0", mH: "375", kb: "120 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]Advertisement for the new AWA 55E Radio for sale in Western Australia in 1932. From: West Australian Wireless News & Musical World, April 1932, page 86.", title: "Amalgamated Wireless Radiola 55E Ch= C89 uploaded by RM Member 20127 (2)", ite: "2"} {gbW: "900", gbH: "598", mW: "500", mH: "332.0", kb: "162 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]C89 Chassis prior to restoration", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "837", gbH: "371", mW: "500", mH: "221.0", kb: "156 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]C89 Chassis rear view, prior to restoration", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "854", gbH: "554", mW: "500", mH: "324.0", kb: "168 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]C89 Chassis prior to restoration", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "850", gbH: "1327", mW: "240.0", mH: "375", kb: "159 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "900", gbH: "629", mW: "500", mH: "349.0", kb: "112 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]After restoration", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "700", gbH: "642", mW: "408.0", mH: "375", kb: "38 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]After restoration", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "700", gbH: "561", mW: "467.0", mH: "375", kb: "44 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]First RF coil", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"} {gbW: "900", gbH: "1173", mW: "287.0", mH: "375", kb: "166 KB", notes: "For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney", title: "Amalgamated Wireless Radiola 55E Ch= C89 from RM Member 20127 (1)", ite: "1"}

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1571278) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1578154) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1737369) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1737370) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1737371) Radio

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1737372) Radio

Next pictures

Use red slider bar for more.

Radiola 55E Ch= C89; Amalgamated Wireless (ID = 1433408) Radio

Amalgamated Wireless: Radiola 55E Ch= C89 [Radio] ID = 1433408 557x933

Select picture or schematic to display from thumbnails on the right and click for download.

For model Radiola 55E Ch= C89, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:

Australia

Manufacturer / Brand:

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Year: 1932

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

6: 235 235 235 224A 247 280

Main principle

TRF without regeneration; 1 AF stage(s); Screengrid 1926-1935

Tuned circuits

4 AM circuit(s)

Wave bands

Broadcast only (MW).

Details

Power type and voltage

Alternating Current supply (AC) / 200-260 Volt

Loudspeaker

Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Power out

from Radiomuseum.org

Model: Radiola 55E Ch= C89 - Amalgamated Wireless

Material

Wooden case

Shape

Console, Lowboy (legs < 50 %).

Notes

6 Valve, AC powered, Screen Grid, TRF Receiver with Linear Power Detection and one stage of pentode audio amplification.

Chassis:
The chassis has a phonograph input and selector switch on the rear.
Later production chassis used a split RF choke and additional filter capacitors in the detector stage.
Mains voltage selection was by moving a fuse under a cover on the rear of the chassis.
Chassis also used in Duoforte 55E C89.

Cabinet:
Console style cabinet with tuning, tone and volume controls on the front panel.
Cabinet by F. Dickin Ltd.

Price in first year of sale

38.00 Aus£

Mentioned in

- - Manufacturers Literature (AWA Radiola Service Instruction 1932)

Documents regarding this model

AWA Fisk Series Radiola 55E Pamphlet

820 KB

Model page created by Stuart Irwin. See "Data change" for further contributors.

All listed radios etc. from Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Here you find 1307 models, 648 with images and 402 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Literature "Radio Waves (HRSA)" No. 28 | 1989-04

Collection of Gary Cowans (AUS)

Collection of Harold Norrie (AUS)
