Radiola 575P

Radiola 575P; Amalgamated Wireless (ID = 2498960) Radio Radiola 575P; Amalgamated Wireless (ID = 2498962) Radio
Radiola 575P; Amalgamated Wireless (ID = 2498963) Radio Radiola 575P; Amalgamated Wireless (ID = 2498964) Radio
Use red slider bar for more.
Radiola 575P; Amalgamated Wireless (ID = 2498960) Radio
Amalgamated Wireless: Radiola 575P [Radio] ID = 2498960 1400x958
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 575P, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1956/1957 Category: Broadcast Receiver - or past WW2 Tuner

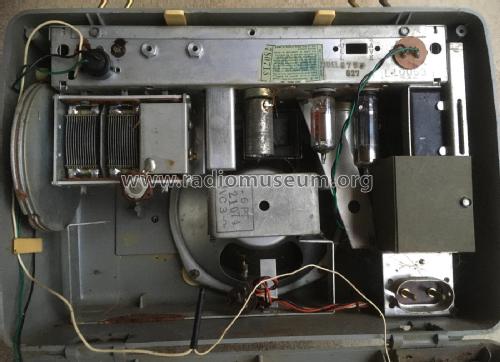

Valves / Tubes 5: 1R5 1T4 1S5 3V4 6X4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details

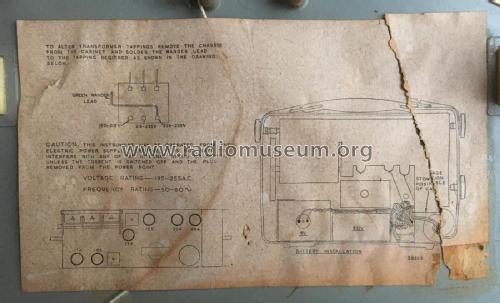

Power type and voltage Line / Batteries (any type) / 195-215; 216-235; 236-255 / 7.5 & 90 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 0.2 W (undistorted)
from Radiomuseum.org Model: Radiola 575P - Amalgamated Wireless
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 335 x 240 x 150 mm / 13.2 x 9.4 x 5.9 inch
Notes

Portable Battery/AC radio with battery reactivation.

Battery types used: (A) 7½V Eveready 719 or Diamond 3719 & (B) 90V Eveready Mini-Max 490P or Diamond 3490.

See also Hotpoint model Q74MAR.

Price in first year of sale 32.80 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Information & Service Data.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A115.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
