Radiola 5 563MA

Radiola 5 563MA; Amalgamated Wireless (ID = 2409922) Radio Radiola 5 563MA; Amalgamated Wireless (ID = 2409923) Radio
Radiola 5 563MA; Amalgamated Wireless (ID = 619734) Radio Radiola 5 563MA; Amalgamated Wireless (ID = 619735) Radio
Use red slider bar for more.
Radiola 5 563MA; Amalgamated Wireless (ID = 2409922) Radio
Amalgamated Wireless: Radiola 5 563MA [Radio] ID = 2409922 1400x737
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola 5 563MA, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:

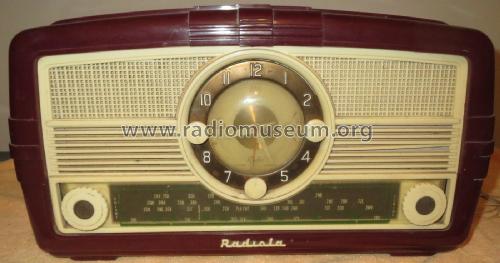

AWA 563MA Clock Radio Front

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6BA6 6AV6 6AQ5 6X4
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Radiola 5 563MA - Amalgamated Wireless
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 345 x 190 x 170 mm / 13.6 x 7.5 x 6.7 inch
Notes

Colours available in Brown, Burgundy, Ivory & Grey. Later versions also came in Green, Red, Blue & Black.

See also Hotpoint P65MEC.

Price in first year of sale 35.50 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. XIII
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Infomation & Service Data.)
Literature/Schematics (2) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page A108.)
Literature/Schematics (3) Australian Official Radio Service Manual AORSM (Volume 13, 1955, Page 86.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
