Radiola 5 575PZ

ID = 193476

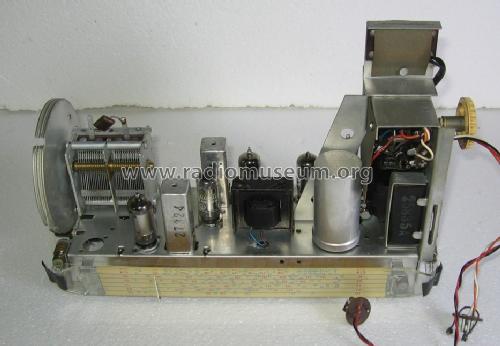

{gbW: "933", gbH: "684", mW: "500", mH: "366.0", kb: "98 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]AWA Radiola 575PZ in green. Photo taken with permission from owner.", title: "Amalgamated Wireless Radiola 5 575PZ uploaded by Stuart Irwin (2)", ite: "2"} {gbW: "700", gbH: "730", mW: "359.0", mH: "375", kb: "101 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]AWA 575PZ back cover open. Photos taken with permission from owner.", title: "Amalgamated Wireless Radiola 5 575PZ uploaded by Stuart Irwin (2)", ite: "2"} {gbW: "933", gbH: "647", mW: "500", mH: "346.0", kb: "101 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]AWA 575PZ chassis. Photo taken with permission from owner.", title: "Amalgamated Wireless Radiola 5 575PZ uploaded by Stuart Irwin (2)", ite: "2"} {gbW: "800", gbH: "761", mW: "394.0", mH: "375", kb: "156 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney", title: "Amalgamated Wireless Radiola 5 575PZ from RM Member 20127 (1)", ite: "1"} {gbW: "800", gbH: "795", mW: "377.0", mH: "375", kb: "93 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]Power switch showing pwer selections. 1)Activate 2)AC 3)OFF 4)Save 5)Full", title: "Amalgamated Wireless Radiola 5 575PZ from RM Member 20127 (1)", ite: "1"} {gbW: "800", gbH: "445", mW: "500", mH: "278.0", kb: "97 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:[br]Picture of label inside cabinet", title: "Amalgamated Wireless Radiola 5 575PZ from RM Member 20127 (1)", ite: "1"} {gbW: "800", gbH: "1030", mW: "291.0", mH: "375", kb: "154 KB", notes: "For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney", title: "Amalgamated Wireless Radiola 5 575PZ from RM Member 20127 (1)", ite: "1"}

Radiola 5 575PZ; Amalgamated Wireless (ID = 955735) Radio

Radiola 5 575PZ; Amalgamated Wireless (ID = 955736) Radio

Radiola 5 575PZ; Amalgamated Wireless (ID = 955737) Radio

Radiola 5 575PZ; Amalgamated Wireless (ID = 1649864) Radio

Radiola 5 575PZ; Amalgamated Wireless (ID = 1649865) Radio

Radiola 5 575PZ; Amalgamated Wireless (ID = 1649867) Radio

Use red slider bar for more.

Amalgamated Wireless: Radiola 5 575PZ [Radio] ID = 955735 933x684

Select picture or schematic to display from thumbnails on the right and click for download.

For model Radiola 5 575PZ, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA Radiola 575PZ in green. Photo taken with permission from owner.

Country:

Australia

Manufacturer / Brand:

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Year: 1956 ?

Category: Broadcast Receiver - or past WW2 Tuner

Valves / Tubes

5: 1R5 1T4 1S5 3V4 6X4

Main principle	Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	Line / Batteries (any type) / 195-215; 216-235; 236-255 / 90 & 7.5 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org	Model: Radiola 5 575PZ - Amalgamated Wireless
Material	Plastics (no bakelite or catalin)
Shape	Portable set > 8 inch (also usable without mains)
Dimensions (WHD)	335 x 240 x 150 mm / 13.2 x 9.4 x 5.9 inch

Model page created by Stuart Irwin. See "Data change" for further contributors.
