Radiola Transistor 6 694P

Radiola Transistor 6 694P; Amalgamated Wireless (ID = 680410) Radio

Radiola Transistor 6 694P; Amalgamated Wireless (ID = 680411) Radio

Radiola Transistor 6 694P; Amalgamated Wireless (ID = 680412) Radio

Radiola Transistor 6 694P; Amalgamated Wireless (ID = 680413) Radio
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829330) Radio Radiola Transistor 6 694P; Amalgamated Wireless (ID = 680409) Radio
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829331) Radio Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829332) Radio
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829333) Radio Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829334) Radio
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829335) Radio Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829336) Radio
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829337) Radio Radiola Transistor 6 694P; Amalgamated Wireless (ID = 2093977) Radio
Use red slider bar for more.
Radiola Transistor 6 694P; Amalgamated Wireless (ID = 1829330) Radio
Amalgamated Wireless: Radiola Transistor 6 694P [Radio] ID = 1829330 1024x639
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Transistor 6 694P, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2N412 2N410 2N410 2N408 2N270 2N270 GEX34 GEX34 GEX34
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Radiola Transistor 6 694P - Amalgamated Wireless
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 8.5 x 6.25 x 3 inch / 216 x 159 x 76 mm
Notes

Very similar to model 694PY.

Colours are Manly Tan, Saddle Tan and Pigskin.

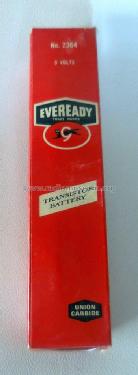

Battery type used: 9V Eveready 2364, National 106PP or Ray-O-Vac RR364.

Price includes batteries.

See also Airzone model A603P & Westinghouse model W603P.

Net weight (2.2 lb = 1 kg) 3 lb (3 lb 0 oz) / 1.362 kg
Price in first year of sale 37.80 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Supplement to Vol. 1, 1960, Page A9-A)
