Radiola 80B Ch=C82

Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Data
Forum
Pictures
Collections

  • Year
  • 1931
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 310763

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; 2 AF stage(s); Screengrid 1926-1935
  • Tuned circuits
  • 4 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Batteries / addl. power jack
  • Loudspeaker
  • Magnetic loudspeaker (reed) generic.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Radiola 80B Ch=C82 - Amalgamated Wireless
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Notes

  • 6 Valve, battery powered, Screen Grid, TRF Receiver with Leaky Grid detection and two stage, transformer coupled audio amplifier.

    Chassis:
    The chassis has a phonograph input with selectable radio/phone switch on the rear of the chassis.

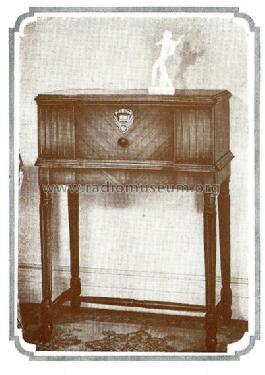

    Coffin box style table cabinet, Maple finish, with an opening lid.  Tuning control on the front and volume control on the left hand side.  An optional pedestal stand is available at £3/15/- extra.

    Same cabinet as the 1930, Radiola Eighty table model.

  • Literature/Schematics (1)
  • - - Manufacturers Literature (AWA Radiola service Instruction 1931)
  AWA Service Data 80B C82 138 KB
  • Documents regarding this model
  • Author
  • Model page created by Gary Cowans. See "Data change" for further contributors.
