Radiola (Egg Crate) 92

Radiola 92; Amalgamated Wireless (ID = 747616) Radio

Radiola 92; Amalgamated Wireless (ID = 747617) Radio
Radiola 92; Amalgamated Wireless (ID = 617621) Radio Radiola 92; Amalgamated Wireless (ID = 617623) Radio
Use red slider bar for more.
Radiola 92; Amalgamated Wireless (ID = 617621) Radio
Amalgamated Wireless: Radiola 92 [Radio] ID = 617621 830x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola (Egg Crate) 92, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA model 92 4 valve, 1940.

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 6A8G 6G8G 6V6G 5Y3G
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 200-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Radiola 92 - Amalgamated Wireless
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 328 x 225 x 195 mm / 12.9 x 8.9 x 7.7 inch
Notes

From 1939 till 1941, AWA produced a range of Radiola radios with a simple, low decoration, Bakelite cabinet. One Radiolette version, Model 509M was also produced post WW2 in 1946.

This series of radios which were produced in a range of colours from 1939 till 1940 and brown from 1941 till 1946 have become known to collectors as the “Egg crate” models after the distinctive square holes in the speaker grill.

Readily available Colours were Ivory, Black, Walnut and Green.

Rare colours of Blue and Pink as shown in “Radio Days” by P Sheridan and R Singer, page 97, are known to exist and were possibly only manufactured in limited numbers for special Dealer/show promotions.

Radiola Models 84, 84X, 84Y8686X86Z, 92  92X, 92Y and Radiolette 509M.

For the Model 92, 4Valve, AC powered, Superheterodyne, released in July 1940.

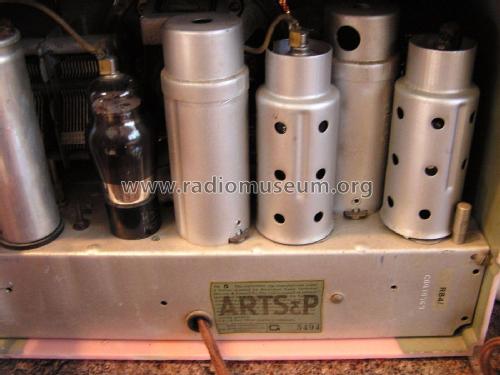

Chassis:

  • Aerial filter circuit
  • 3 position tone control.
  • Ivory Pearloid Celluloid Dial scale with a white dial pointer
  • Chassis also used in AGE B64ME and Westinghouse 920.

Cabinet:

Available in Black, Ivory, Walnut and Green.

Collectors' prices

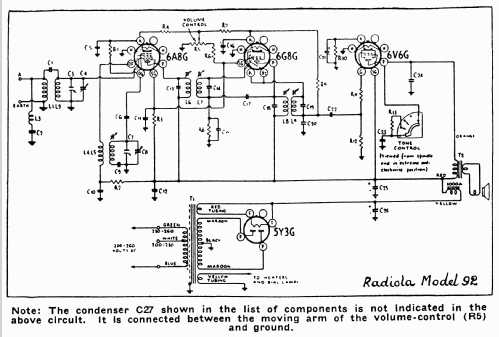

Circuit diagram reference Australian Official Radio Service Manual Vol. IV
Literature/Schematics (1) - - Manufacturers Literature (The Fisk Radiola Technical Information & Service Data, Model 92.)
Literature/Schematics (2) AWA Radiolette Book 1932-1949 (Edition 4 2018, Page 254)

Model page created by Stuart Irwin. See "Data change" for further contributors.
