Radiola Eight Transistor B23

Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388913) Radio

Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388914) Radio
Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1888358) Radio Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388521) Radio
Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388515) Radio Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1350954) Radio
Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1350955) Radio Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388516) Radio

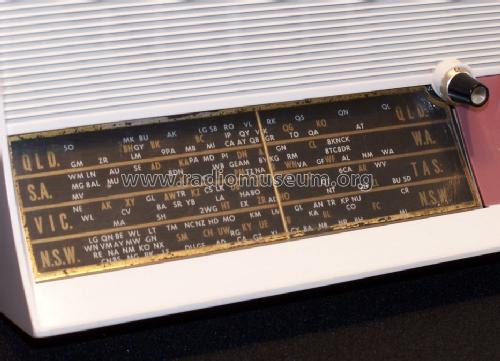

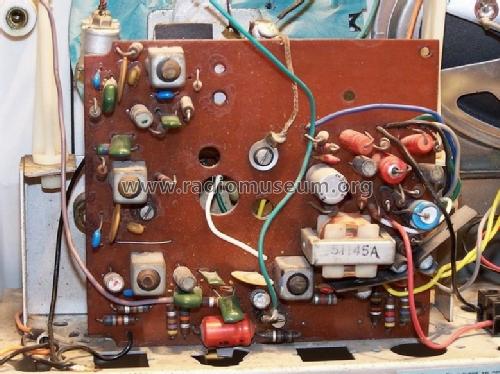

Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388518) Radio Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388520) Radio
Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388522) Radio Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1388523) Radio
Use red slider bar for more.
Radiola Eight Transistor B23; Amalgamated Wireless (ID = 1888358) Radio
Amalgamated Wireless: Radiola Eight Transistor B23 [Radio] ID = 1888358 800x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Eight Transistor B23, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney:
AWA pamphlet

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2N374 or. 2N1636 2N406 2N373 or. 2N1634 2N373 or. 2N1634 2N406 2N408 2N217S 2N217S 1N295
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out 0.4 W (max.)
from Radiomuseum.org Model: Radiola Eight Transistor B23 - Amalgamated Wireless
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13.5 x 8 x 6 inch / 343 x 203 x 152 mm
Notes

Model B19 is an eight transistor, battery operated super-heterodyne Mantel receiver designed for reception of the Medium Wave Band.

FEATURES OF DESIGN include:-

Ferrite rod aerial with provision for external aerial; high gain I.F. transformers; autodyne converter; high sensitivity; centre-tapped 80 ohms speaker, obviating the need for an output transformer.

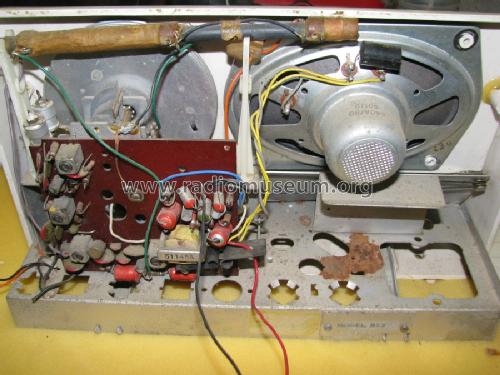

  • Built in the same chassis and case as the AWA B15 valve model.
  • 6" x 4" high impedance centre tapped loudspeaker.
  • Battery Eveready Type 286.
  • Weight includes battery.
  • Colours available in Black/Bone White, Orient Red/Bone White, Deep Lavender/Bone White & Mist Blue/Vista Blue.
  • See also Electrice E822 & Westinghouse W822.
Net weight (2.2 lb = 1 kg) 7 lb 4 oz (7.25 lb) / 3.292 kg
Price in first year of sale 34.65 AUS £
Mentioned in July 1962

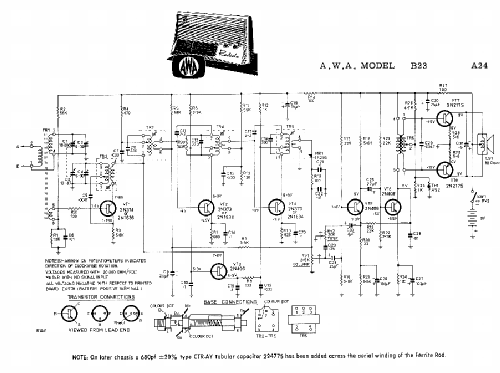

Literature/Schematics (1) - - Manufacturers Literature (AWA Manufacturers Supervised Service, July 1962.)

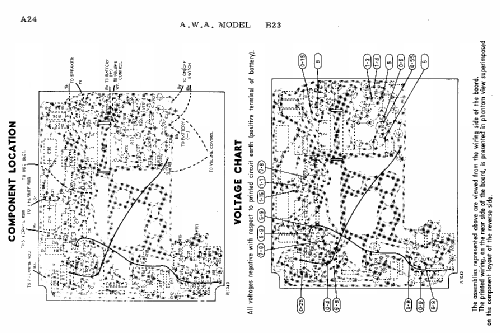

Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (Vol. 1, 1960 Supplement, Page A14a.)
Literature/Schematics (3) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A24. (Also at KevinChant.com))
Literature/Schematics (4) Mingay's Radio Electrical Weekly Price Service (REWPS) (Feb 1963 to Feb 1964.)
