Radiola Transistor Seven 897-P

Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1432098) Radio
Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1431626) Radio Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1431627) Radio
Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1472714) Radio Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1909690) Radio
Use red slider bar for more.
Radiola Transistor Seven 897-P; Amalgamated Wireless (ID = 1431626) Radio
Amalgamated Wireless: Radiola Transistor Seven 897-P [Radio] ID = 1431626 900x763
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiola Transistor Seven 897-P, Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

Country:  Australia
Manufacturer / Brand:  Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2N219 2N218 2N218 OC602 OC602 OC604 OC604 GEX34
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 1x 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Radiola Transistor Seven 897-P - Amalgamated Wireless
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes

AWA’s first transistor radio was the Radiola Transistor 7 (897P) designed by Graham Moore. It was released in November 1957 selling for 44 Guineas. It was virtually identical in appearance to the AWA 581PZ tube portable and followed conventional tube receiver construction methods. See "History of AWV - Transistor History"  (Mark P D Burgess 2009)

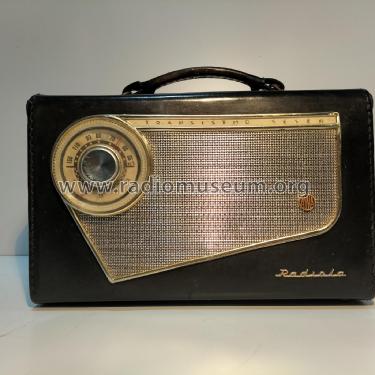

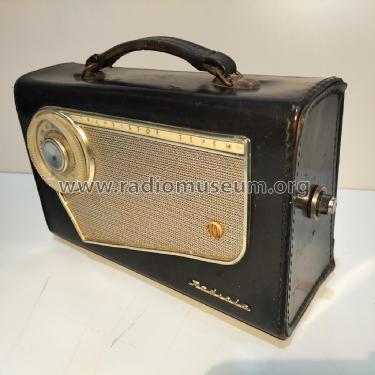

Leather case in Gunmetal & Tan.

Battery type used: 9V Eveready 276P, Berec PP20, National 306S, Ray-O-Vac 76P or Vidor VT9.

Price in first year of sale 46.20 AUS £
Literature/Schematics (1) - - Manufacturers Literature (AWA Technical Information & Service Data.)
Literature/Schematics (2) J.R. Publications Transistor Radio Service Handbook (A Series Handbook, Page A20.)

Model page created by Mike Melzer. See "Data change" for further contributors.
