• Country
• Australia

• Manufacturer / Brand
• Amalgamated Wireless (Australasia) Ltd. (AWA); Sydney

• Year
• 1953–1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 178445

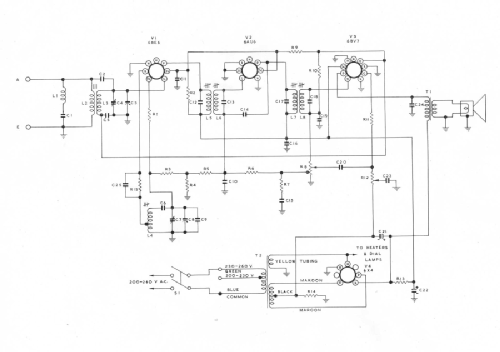

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BE6 6AU6 6BV7 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 200-230; 230-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

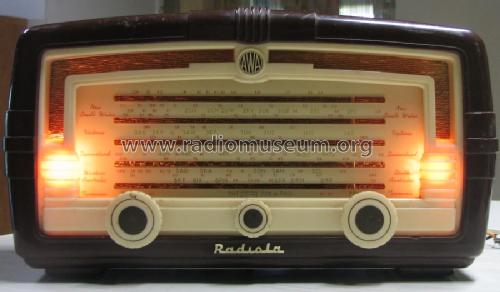

• Model: Radiola "New Champion" 449MA - Amalgamated Wireless

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 350 x 185 x 170 mm / 13.8 x 7.3 x 6.7 inch

• Notes

• Radiola 449MA "New Champion";

  See also Hotpoint P64ME.

  Colours available in Walnut, Burgundy, Ivory & Grey.

• Price in first year of sale
• 22.88 AUS £

• Source of data
• - - Manufacturers Literature

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. XII

• Literature/Schematics (1)

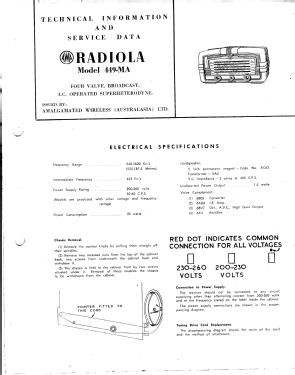

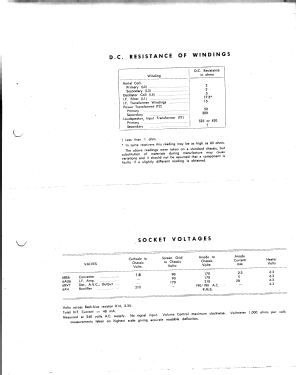

• - - Manufacturers Literature (AWA Technical Information & Service Data.)

• Literature/Schematics (2)
• Australian Official Radio Service Manual AORSM (Volume 12, 1954, Page 87.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
